Navien NPE-2 Series
CONDENSING TANKLESS WATER HEATERS
Platinum Air Care makes it easy to go tankless with Navien
“We were tired of running out of hot water, high energy bills and the idea of constantly heating a big old water storage tank. That’s why we asked Platinum Air Care to install a Navien Premium Efficiency (NPE-2) tankless water heater. We researched the Energy Star website and found Navien on the top of the energy factor list. Now we get endless hot water when we need it and we’re not heating water when we don’t.”
Navien Tankless Water Heaters
High Efficiency Water Heater - The Right Choice For Your Home
All the hot water you need, for as long as you need it.

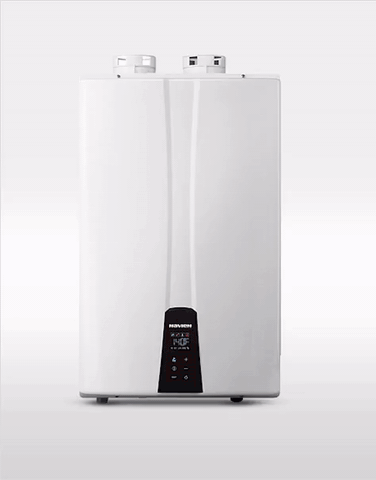

How It Works:
1. When a hot water tap is opened, the tankless water heater detects the flow
2. The flow sensor activates to determine the amount of hot water needed
3. The igniter activates
4. The gas control valve opens to supply the correct amount of gas
5. The fan and venturi activate to provide the correct amount of gas and fuel
6. The premix burner ignites providing a flame to heat the water
7. Cold water is pre-heated in the secondary heat exchanger
8. Pre-heated water passes from the secondary to the primary heat exchanger
9. The unit determines outgoing set temperature and adjusts the flame to heat the water
10. Heated water moves to the buffer tank
11. Desired hot water amount delivered to the faucet
Innovations make Navien condensing tankless water heaters the best choice for homeowners
Dual stainless steel heat exchangers last longer than copper
Condensing technology reduces energy consumption and greenhouse gas emissions
For homes with extra high demand, NPE-2 Series units can be cascaded without external control
Optional NaviLink™ Wi-Fi control system gives you access to your Navien systems from anywhere in the world

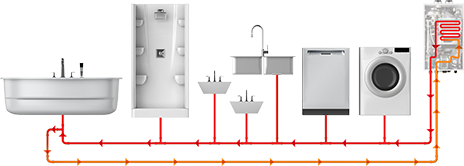

NPE-A2 Series models feature ComfortFlow® internal recirculation system which saves water and reduces time to get hot water
HotButton on-demand recirculation option with built-in controller
H2Air combination space heating and domestic hot water supply optional for NPE-A2 models
Bulky tanks are history... Navien high efficiency tankless is the future
Much more energy efficient than old fashioned water heating tank systems
The highest energy efficiency water heater in the industry - up to 0.97 UEF / 0.99 EF
ENERGY STAR® Certified
Backed by the industry’s strongest warranty - 15 years on heat exchangers
Takes about 80% less space than old fashioned tank heaters
Longer lasting than tank heaters
High efficiency condensing unit - improved compared to other tankless heaters
Perfect water temperatures
Limitless gallons of water
Easy to use control panel
Elegant, clean appearance
Improves home resale value
Ideal for replacements or new construction
Better efficiency compared to electric tankless water heaters
Navien Tankless Size Comparison To Standard Tank Water Heater
The ultimate in energy efficiency
Navien condensing technology provides up to 0.96 UEF. These extremely efficient and eco-friendly units provide extra energy savings over traditional tank and non-condensing tankless water heaters.
Operating Cost
* Based on Energy Guide cost estimates using $1.09 per therm of natural gas. Cost is in US dollars.
Protect the environment as you add value
Navien primary condensing stainless steel heat exchangers recover extra heat that would be lost in non-condensing tankless water heaters to reduce energy consumption and CO₂ emissions. That keeps exhaust temperatures very low - so low that economical Schedule 40 PVC pipe can be used for venting in almost all applications.
Schedule your free consultation on a new tankless water heater today!
Call us at (519) 686-3595 or Toll Free 1 (877) 339-4701
